Radiation Resistance Testing Laboratory
A state-of-the-art facility by UJP PRAHA a.s. for research and testing of radiation resistance in materials, biological samples, and technologies.
Key Advantages of Our Facility:
• Multiple Irradiation Heads
The main irradiation room is equipped with four independent heads. Additionally, three more heads are installed in separate irradiation rooms, placed vertically and horizontally to extend testing capabilities for various sample types and scenarios.
• Collimated and Open Beam Modes
The heads allow both precise beam collimation and non-collimated exposure to maximize total dose rate.
• Wide Dose Rate Range
Adjustable from 0.1 to 200 Gy/min depending on experiment requirements and sample size.
• Short- and Long-Term Testing
Exposure durations from a few minutes to several days.
• Modern Safety Systems
Continuous monitoring in accordance with international safety standards.
• Automated Operation
Minimal operator presence with remote control capability.
Applications:
• Testing of radiation-resistant electronics
• Space and defense industry
• Nuclear energy sector
• Healthcare and radiotherapy
• Biological and chemical research
Technical Equipment:

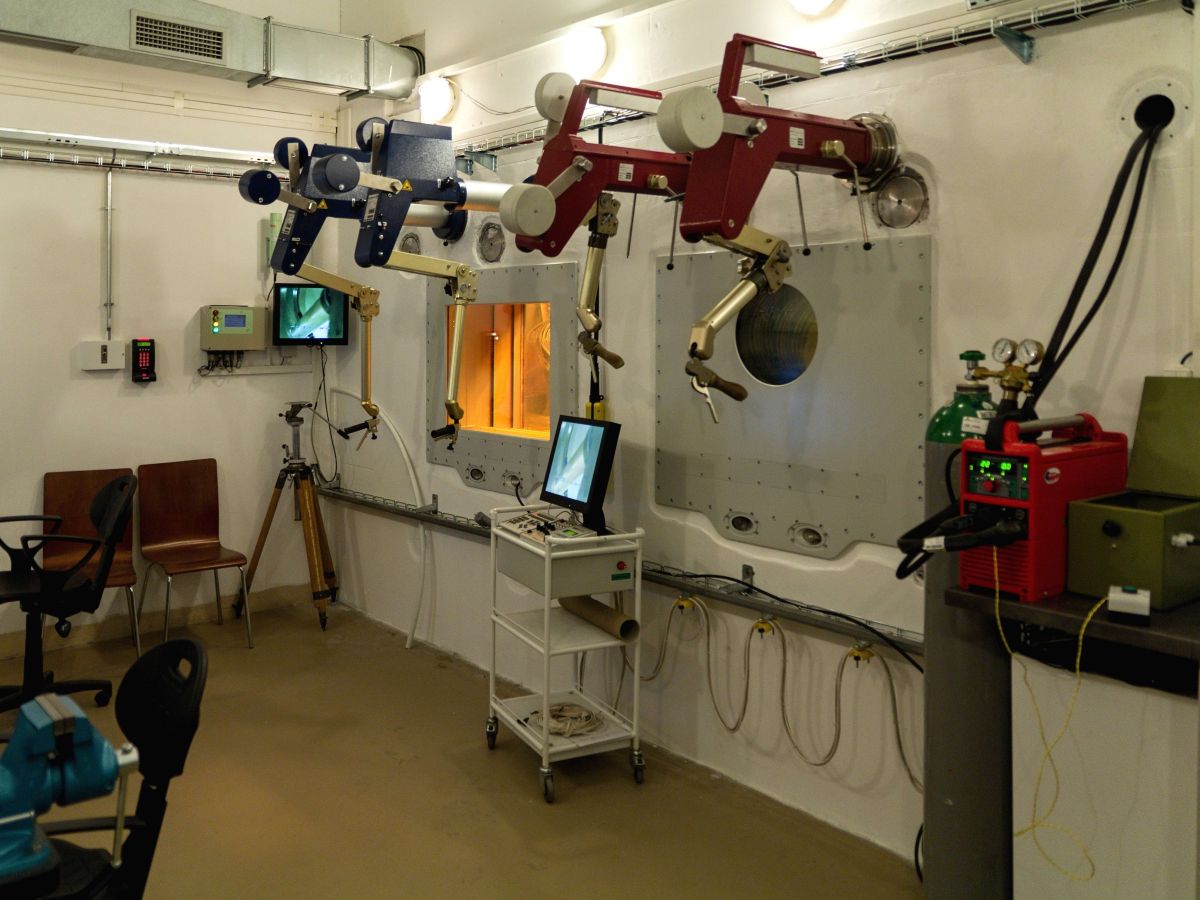

• 5 × 5 meter irradiation room with positioning table and rotary plate
• Four individually calibrated irradiation heads in the main room and three additional heads in separate rooms for extended irradiation directions
• Radiation sources: ⁶⁰Co (energies 1.33 MeV and 1.17 MeV)
• Central control room with advanced monitoring system
Why Choose Us?
• Flexible configuration based on the type of test and client needs
• Independent technological base for industry and research
• Simulation of extreme conditions and long-term radiation exposure
